    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator

    Ask Lasest Price
    Brand Name : NTSJ
    Model Number : FPGR-50
    Certification : CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets/momth
    Delivery Time : within 5 days after payment received
    • Product Details
    • Company Profile

    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator

    Chemical Lab Vacuum Rotary evaporator

    Rotary evaporator is an necessary lab instrument mainly used for the evaporation, concentration, crystallization, drying, separation and solvent recovery in medicine, chemical engineering and biopharmacy industry. Rotary evaporator is developed from principle of thermostat heating makes thin film evaporate under vacuum negative pressure condition. Rotary evaporator use stepless speed regulation to rotate glass bottle in a constant speed, material forms a large area of balanced thin film in bottle wall, then the smart thermostat water bath heats the rotating bottle and conducts high speed evaporation under vacuum condition, solvent steam is cooled by high efficiency glass condenser and recycled to receiving bottle.

    Features

    1. Highly Chemical Resistance-All components that make contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.
    2. Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
    3. Downward-condensing vacuum connection design ensures safe vacuum operation
    4. Modular design (individual rotary and water bath modules) for extremely easy maintenance and easy future upgrades
    5. Easy auto lift with secure lock for the evaporating flask
    6. Easy, straight-forward and visual operation with digital speed and temperature display
    7. PID temperature controller ensures accurate temperature control is maintained
    8. 1-way check valve automatically turns off when draining the receiving flask. The pressure inside evaporator won't be changed during draining.


    Product Model

    Evaporation Flask

    Receiving Flask

    Motor Power(w)

    Bath Power

    Rotation Speed

    Evaporation Speed(L/h)

    Power(V)

    Dismension(cm)
    PR-2
    2L/29#
    1L
    40
    1.5
    10-180
    1.2
    220
    55*35*75
    PR-5
    5L/50#
    2L/3L
    90
    2
    10-90
    2
    220
    55*35*110
    PR-10
    10L/95#
    5L
    120
    3
    5-110
    3.5
    220
    100*50*180
    PR-20
    20L/95#
    10L+5L
    120
    5
    5-110
    5
    220
    110*70*200
    PR-50
    50L/125#
    10L+10L
    180
    5
    5-110
    8
    220
    120*80*220

    Product Details

    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator

    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator


    Packing and delivery

    Packaging
    - The 2L mini rotary evaporator/ vacuum rotary evaporator glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
    - Both neutral and customized packaging can be available.
    Shipping
    - We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.


    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator

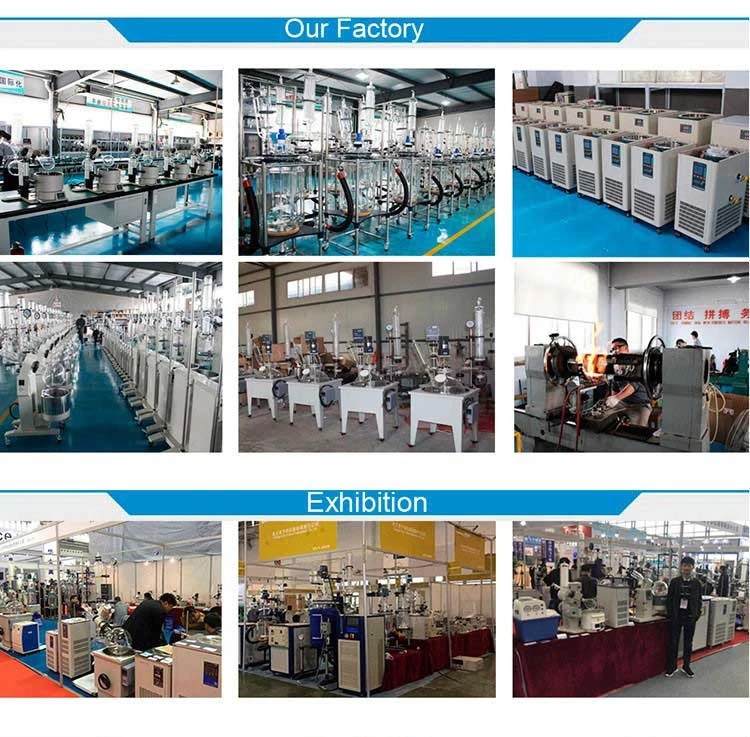

    Our factory

    Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China,The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile , we can provide relevant industry with design , manufacturing , equipment selection instrument supporting , installation , debugging . maintenance and other services etc.

    Short Path Distillation Glassware With PTFE Circulating Vacuum Pump rotary film evaporator


    Our services

    1. The period, scope and condition of the warranty.

    (1) We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
    (2) The damage caused by the transportation problem shall be borne by the seller.

    2. How to solve the problem of your equipment?
    Please send us email of the problem, pictures or a small video will be much better. we will find the
    problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

    3. How to shipping the replacement parts?
    We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

    4. Could you do customized for us?
    We are a manufacturer that can provide all kinds of customized services.
